Giles GVH-F Floor-Stand Ventless Recirculating Type 1 Hood System, 31-3/4" Stand Width, 208-240V/60Hz/1PH
Giles GVH-F Floor-Stand Ventless Recirculating Type 1 Hood System, 31-3/4" Stand Width, 3-Stage Filtration, 208-240V/60Hz/1PH
The Giles GVH-F Floor-Stand Ventless Recirculating Type-1 Hood System is a versatile commercial ventilation solution engineered for floor-mounted cooking applications where traditional ducted exhaust systems are impractical or cost-prohibitive. Featuring advanced 3-stage filtration, durable stainless steel construction, and an integrated interlocked start system, the GVH-F delivers reliable ventless operation for a wide variety of electric cooking equipment in demanding foodservice environments.
Designed for convenience stores, concession areas, supermarkets, institutional kitchens, and compact commercial cooking spaces, the GVH-F eliminates the need for outside venting while maintaining effective grease, smoke, and odor control. Its floor-stand mounted design with a 31-3/4" stand width provides flexible equipment integration and stable installation for commercial cooking operations.
Advanced 3-Stage Filtration System
The GVH-F utilizes a highly efficient 3-stage filtration process to remove grease, smoke, vapor, and airborne cooking particulates. The filtration system includes double stainless steel baffle filters for grease extraction, an electrostatic air cleaner for fine particle removal, and a disposable activated charcoal filter to help reduce cooking odors before recirculating clean air back into the kitchen.
Floor-Stand Mounted Ventless Design
Built for floor-mounted cooking applications, the GVH-F offers flexible installation without requiring costly roof penetrations or external exhaust systems. The freestanding floor-stand configuration makes it ideal for operations where conventional ventilation hoods may be restricted or beyond budget limitations.
Interlocked Start & Commercial Durability
The integrated ILS (Interlocked Start) system enhances operational safety by coordinating hood operation with connected cooking appliances. Constructed from heavy-duty 20 ga. to 18 ga. stainless steel, the GVH-F is built to withstand the rigors of commercial kitchen use while maintaining long-term durability and professional appearance.
Key Features
- Certified Type-1 ventless recirculating hood system
- Floor-stand mounted configuration
- Advanced 3-stage filtration technology
- Double stainless steel baffle filters
- Electrostatic air cleaner
- Disposable activated charcoal filter
- ILS (Interlocked Start) safety system
- Durable 20 ga. to 18 ga. stainless steel construction
- Eliminates need for external ductwork or ventilation
- Designed for commercial cooking applications
- 31-3/4" stand width
- 5.0 amps (hood only)
- Includes sample 20 oz. spray cleaner
- Includes operations manual
- cULus listed
- UL EPH Classified
- CE approved
Specifications
- Manufacturer: Giles
- Model: GVH-F
- Type: Floor-Stand Ventless Recirculating Hood System
- Hood Type: Type-1
- Installation Style: Floor-Stand Mounted
- Filtration System: 3-Stage Air Cleaning
- Filter Types:
- Double Stainless Steel Baffle Filters
- Electrostatic Air Cleaner
- Disposable Activated Charcoal Filter
- Construction: 20 ga. to 18 ga. Stainless Steel
- Stand Width: 31-3/4"
- Electrical: 208-240V
- Frequency: 60Hz
- Phase: 1PH
- Amperage: 5.0 Amps (Hood Only)
- Certifications: cULus, UL EPH Classified, CE

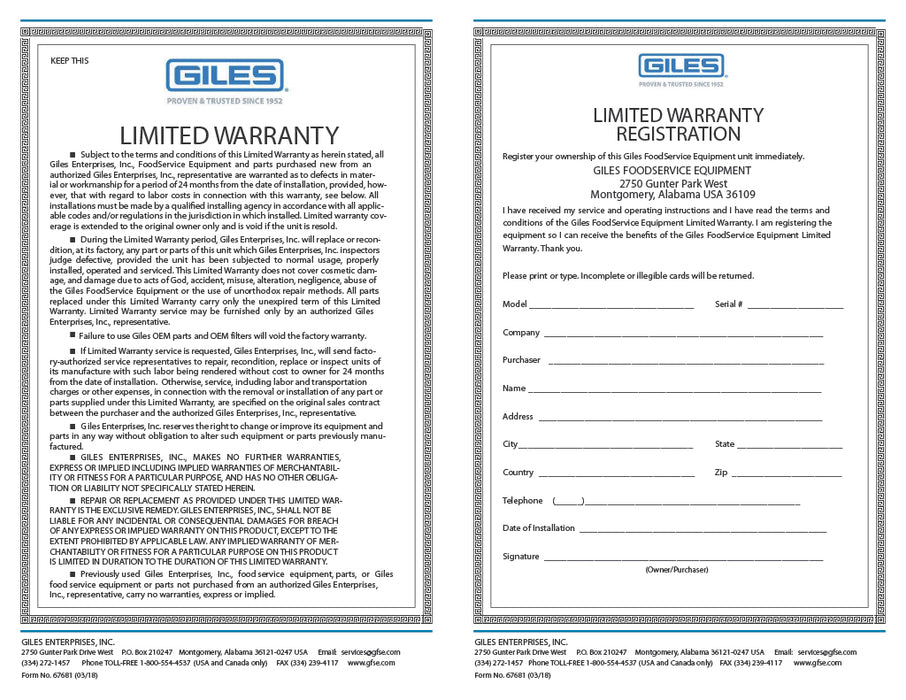

Warranty
Manufacturer Warranty Included
This Item Ships via Common Carrier.
Upgrade your commercial kitchen with the Giles GVH-F Ventless Recirculating Type-1 Hood System for efficient air filtration, flexible floor-mounted installation, and dependable ventless cooking performance. Designed for demanding foodservice environments, this system delivers advanced filtration and durable stainless steel construction without the expense of traditional exhaust ventilation. For time-sensitive orders, please contact us before purchasing. Once your order is processed, cancellation or return may not be guaranteed.
